Supports twotransmitters to work together on the same team
Convenient and thoughtful portable charging case
Working continuously for 23 hours or more
Add countless receivers to a single transmitter
The earhook receiver is lightweight and comfortable
The AUX interface can connect to external media to play audio files
9999 channels

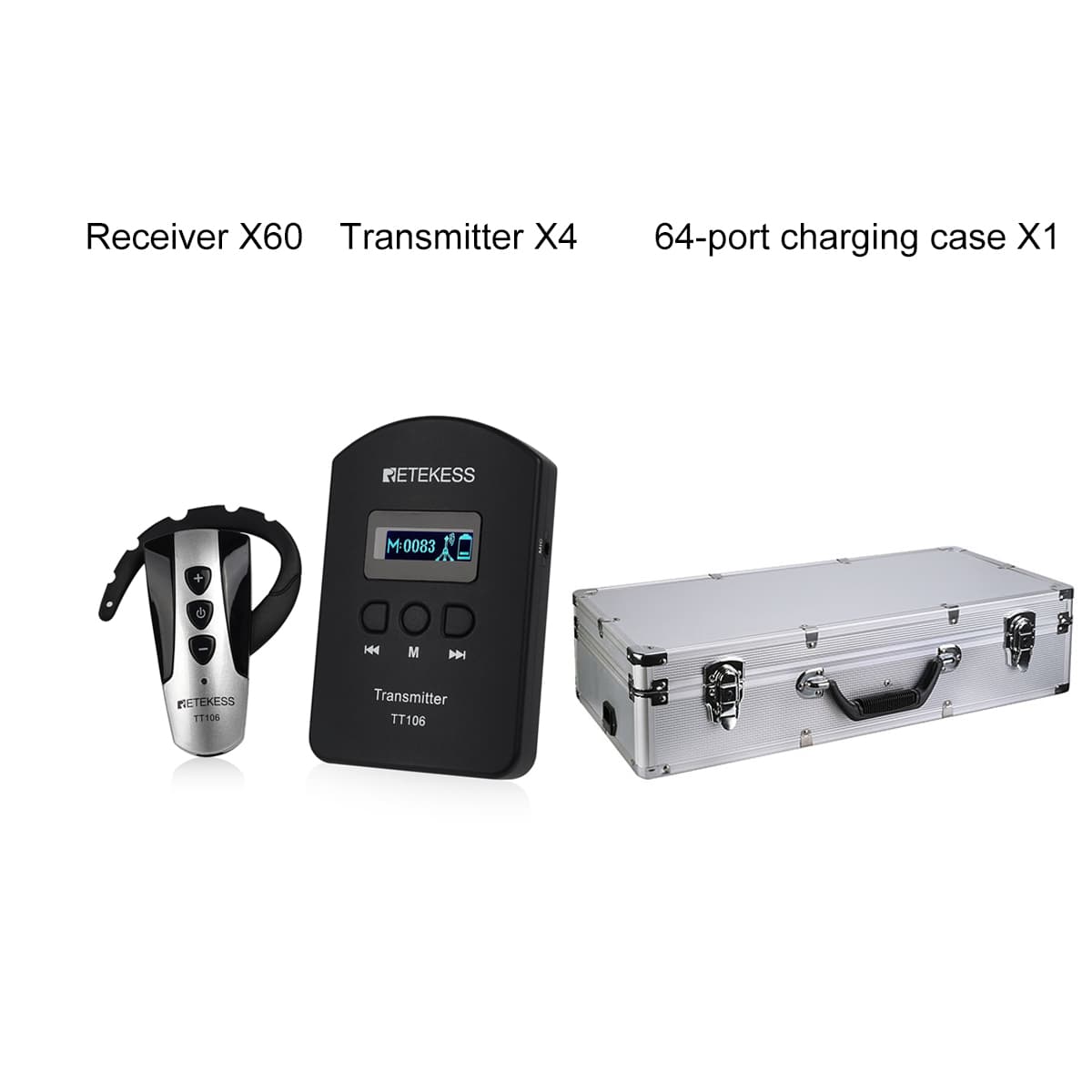

This wireless audio tour guide system package includes 4 transmitters, 60 receivers, a portable charging case with 64 charging ports and corresponding accessories.
Support dual transmitters
This guided tour system supports two launchers to work together in the same team, and the cooperation of two docents makes the event a success.

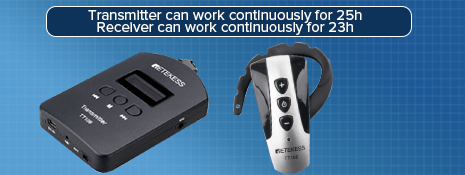

Large battery capacity
The transmitter of this tour guide equipment can be used continuously for 25 hours and the receiver can be used continuously for 23 hours, so you don't have to worry about it running out of power even if the tour is long.
With portable charging case
The 64-port portable charging case can charge 4 transmitters and 60 receivers at the same time, and can store all accessories, making it very portable.
Add receiver
The TT106 transmitter can be connected to an unlimited number of receivers, so you can add as many receivers as you like if your tourist grow in size.
One-click to mute
Turn on the one-key mute function, and some words that cannot or are inconvenient to be said to the receiver will not be passed on to them.

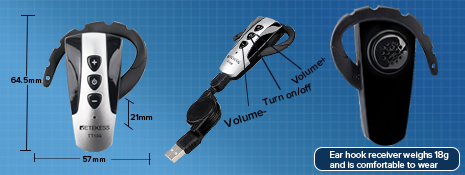

Lightweight receiver
The earhook receiver do not require additional earphones to be plugged in for listening, so they are lightweight and comfortable.
AUX auxiliary jack
The wireless audio tour guide transmitter supports 3.5mm AUX to connect to PC, mobile phone, MP3 and other devices. The pre-recorded attraction explanations, priests preaching or soft music during activity breaks can be played through the transmitter.Moreover, the AUX jack and microphone jack can be used together.
One-click to turn off the receivers
One-click to turn off all receivers instead of turning them off one by one, saving you time and improving efficiency.
Please fill in your procurement needs and contact information
Specification:
TT106 Wireless Transmitter | TT106 Wireless Receiver | ||
Frequency Range | 2400~2483MHz | Frequency Range | 2400~2483MHz |
ID Number | 9999 | ID Number | 9999 |
Supply Voltage | DC3.7V | Supply Voltage | DC3.7V |
Transmitting power | <=50mW | TIS | -90dBm |
Frequency stability | ±0.001 | Frequency stability | ±0.001 |
SNR | 80dB | SNR | 80dB |
Size | 97*63*18mm | Size | 65*58*11mm |
Weight | 70g | Weight | 18g |
Charge time | 3H | Charge time | 2H |
Working time | 25H | Working time | 23H |
Battery specification | 3.7V/1300mA | Battery Specification | 3.7V/380mA |
Charge Jack | MINI USB | Charge Jack | MINI USB |
Modulation frequency deviation | ±320KHz | Modulation frequency deviation | ±320KHz |
Working current | 62mA | Working current | 15mA |
Communication range | 150m (open air) | Standby current | 1mA |
Charging voltage | DC5V | Charging current | 320mA |
Communication range | 150m (open air) | ||
Charging voltage | DC5V |
Specification of charging case:
Input : AC110-220V, 50/60Hz
Output: DC 5V, 7A
Size: 575 x290 x 140mm
Weight: 4220g
Package Includes:
4 Retekess TT106 Transmitter with Mic
60 Retekess TT106 Receiver with earpiece
64 slot charging case
1 Charging cable
Q:Can I use two transmitters in the same group?
A:Yes, you can and all receivers in the group can pick up signals from both transmitters at the simultaneous time.
Q:Can I replace the transmitter's lavalier mic with a neck-mounted mic?
A:Yes, as long as your neck-mounted mic is the same type as the original and the jack is 3.5mm.
Q:I may add receivers in the future. How to charge the additional receivers?
A:This charging case in the package can charge up to 4 Retekess TT106 transmitters and 60 Retekess TT106 receivers simultaneously.
If you need to add it later, you can use the Retekess TT005 Portable Charging Case, which can charge 2 transmitters and 30 receivers simultaneously.
