Support microphone and audio input
10 levels of output volume adjustment
Four levels of output power can be selected
One key lock and one key unlock
Stereo and mono can be switched quickly
PLL Technology

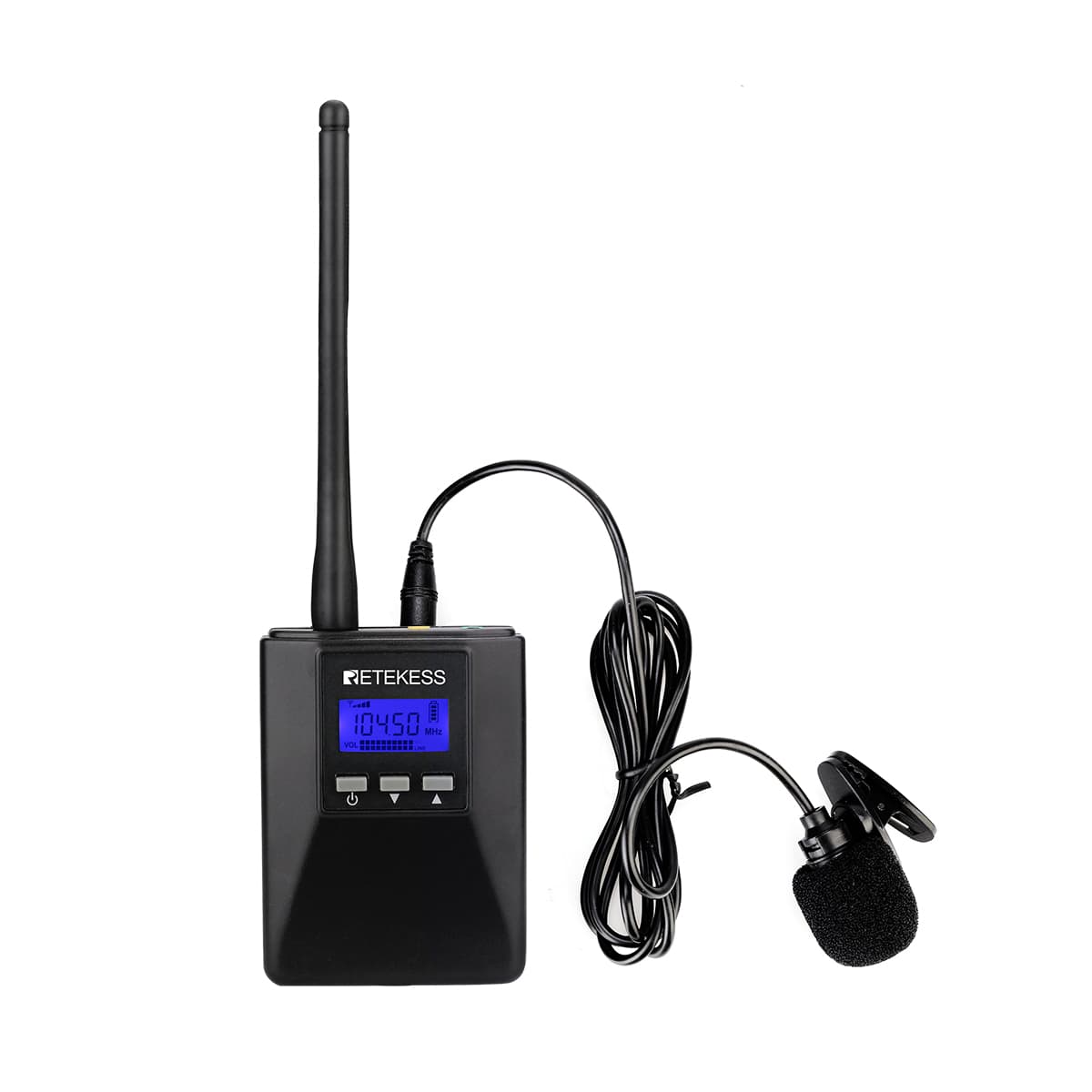

The TR506 portable FM transmitter uses PLL digital technology for more stable signals and less noise.
Working Range
The FM transmitter has 4 levels of output power, with different ranges at different output powers. The maximum range is up to 400 meters in open areas, which is suitable for many occasions.
Pocket size
The FM wireless transmitter weighs about 67 grams, so you can even put it in your pocket. Not only is it more comfortable to use, it is also easy to carry.
LED screen
The high-contrast display shows the frequency, signal and other information, which is convenient for you to operate it.
Audio Input
Support microphone input and external audio device input, you only need to use AUX cable to connect the transmitter and MP3, smartphones, computers, and other devices, as the receiver of the radio can hear the high-fidelity lossless audio coming from these devices.
Please fill in your procurement needs and contact information
Specifications:
Model Number: TR506
Power supply: BL-5C Li-ion Battery 3.7V 1000mAh
Frequency stability: ±10PPM
Stepped - Frequency: 100KHz
Charging time: About 5 hours
charging voltage: 5V
Stray and Harmonic Radiation:≤－30dB
Audio distortion:≤0.2%
Input level:≤－15 dBV
Modulation frequency offset: ±75KHZ
SRN: ≥60 dB
Host Size: 82*60*22mm (No salient part)
Machine weight: About 67 grams (without batteries)
FM antenna: Anti-screw direction
Car charger: With IC protection
Lavaliere microphone: Stereo, gold plating,1.2 meters with shielding function.
Audio cable: 3.5 male to male
USB cable: USB to T port (MINI)
Package Includes:
1 X TR506 Transmitter
1 X FM antenna
1 X Li-on battery
1 X Car charger
1 X Lavaliere microphone
1 X Audio cable
1 X USB cable
